Material Trading
Bypass Pumps
- Prime and Re prime automatically to 28 Feet
- Run Dry Unattended
- 24 Hour Fuel Tanks
- Open bladed Impellers for trash handling
- Lubricated mechanical seals for long life
- Diesel Engine Power
Water cooled compressors - Unparalleled backup service
CAPACITY
Head : Unto 3000 cu mtr / hr.
Direction of Rotation : Clock wise from drive end.
Speed : Unto 80 M (260 Feet),Unto 1450 rpm.
Temperature : Unto 140 Deg. Cel.
Casing Pressure : Unto 10 Kg/Sq. Cim ,(142 ibs/Sq. Inch).

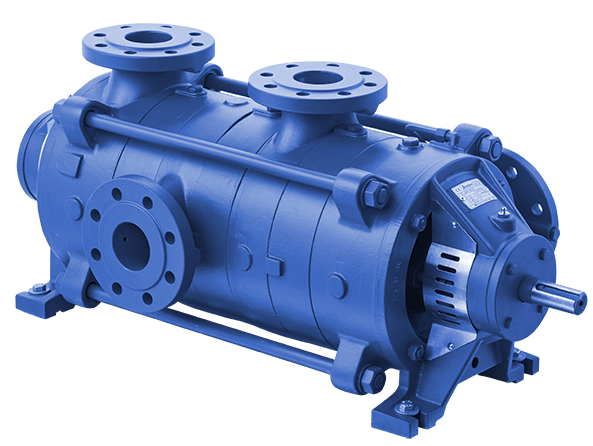

GEHO type VPS
The GEHO type VPS is a multi-stage, non-self-priming centrifugal pump. The VPS series is purpose-built for well and Well Point jetting with capacities of up to 85 m³/h against a maximum discharge pressure of 17.6 bar.
Applications:
- Deep well dewatering
- Irrigation
- Public water scheme
- Well and Well Point installation

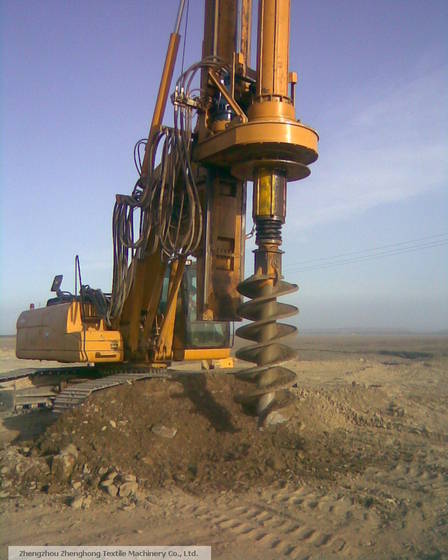

Drill Machine
The installation of a dewatering system typically begins with creating a hole in the ground before placing a Well Point or educator well. Traditionally, this involved using water pumped by a high-pressure jet pump through a sand casing to displace soil to the desired depth. However, Advanced Land Drying recognized that these methods were too slow for modern schedules, particularly when encountering dense clays or tills.
To improve productivity and accessibility, Advanced Land Drying developed the Drill Machine, integrating a hydraulic top head drive drill with a track-mounted “Koblaco” hydraulic excavator. This innovation accelerated installation processes and enabled access to sites previously inaccessible to truck-mounted drills. With two Drill Machines in operation, we efficiently serve the construction and environmental industries.

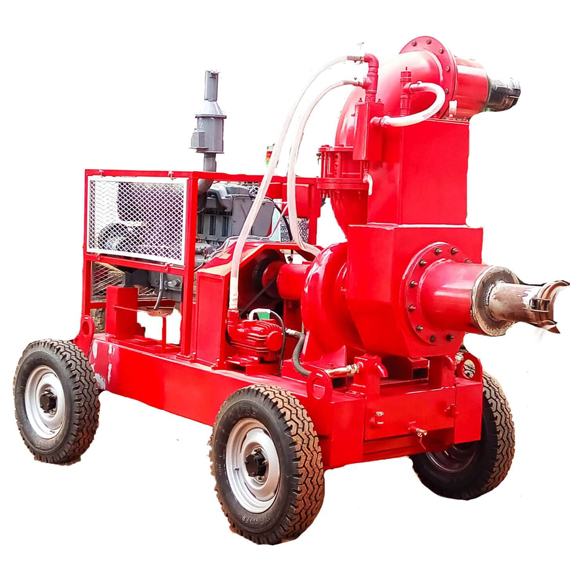

Dewatering Pump
Power Unit
Choice of diesel engines, Air cooled/Water cooled Deutz, Lister, Lomaradini, Kirloskar,
between 1500 and 2000rpm. Alternative 4 pole electric Motors also available.
Fuel Tank Capacity
200 Ltr with cleaning facility
Pump Performance
Max Head : 50mtr
Max Flow : 400 m3/hr
Max Solid : 50 mm
Suction Head : 9mtr
Suction & Discharge
Suction flange : 150mm PN16
Discharge flange : 150mm PN16
Quick acting coupling optional
Vacuum System
Vacuum pump for automatic Prining & Recreminate 70 CFM Double vacuum system also Available as optional.
Shaft Seal
Carbon ceramic special mechanical Seal designer for long life when Used for sandy seawater.
Main Components
Volute : SG/Cast Iron/316SS
Impeller : Bronze/316SS
Shaft : 304/316SS
Weight
AP150SE : 971 Kgs
AP150HE : 1.072 Kgs
Chassis
4 Wheelsitetrailer, 2 wheel Road trailer or skid mount

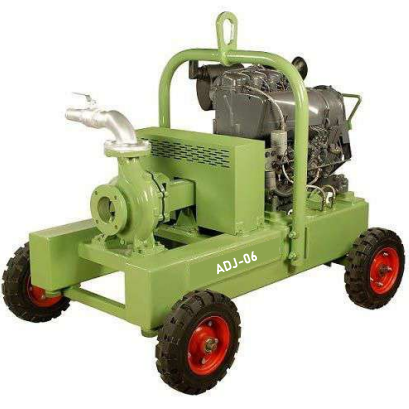

High Pressure jetting pump
Benefits:
Wide Application-used for jetting, dewatering, drain flushing tank cleaning and emergency fre pumping Hard wearing Materials – Cast Iron, Bronze, and SS Gr 316 Two / Four Wheel road trailor easy towed to side by pickup vehicle. Long term reliability, with simple maintenance procedures, enactive high and low flow pumps Low centre of Gravity making it easy to low, Low noise, sound reduction canopy (optional).
Engine Specification:
Deutz (Germany diesel engine type: F3L 912,3 cylinder, air cooled 34 kw at 2000 rpm with starter motor, charging alternator oil bath air flter injection pump, oil flter, engine mounted exhaust silencer, manual shut off, wire harness and starting panel. 4″ Suction & 2″ Discharge to 10 bar pressure, Gl Volute impeller Bronze, SS shaft, Mechanical Seal, Connected with Deutz engine.
Application:
High pressure mobile pumps used extensively by Contractors and Municipalities, Efficient performance and simple design coupled to use for many site tasks make these pumps a favorite with users who require high utilization, high return ON capital, and low running costs.
Pump Performance:
Max head: 50m / hr
Max flow: 75 cu mtr / hr
Pipe Connections:
Suction: 100mm PN 10
Discharge: 50mm PN 10
Materials:
Volute: SG Cast Iron / SS316
Impeller: SG Cast Iron / Bronze
Weight:
JP 100: 750 kgs
Chassis:
4 wheel site trailer / 2 wheels road chassis (optional)
Fuel Tank Capacity: 150 liters with cleaning facility.
Power Units: Deutz, Electric Motor
Shaft Seal: Mechanical SEAL

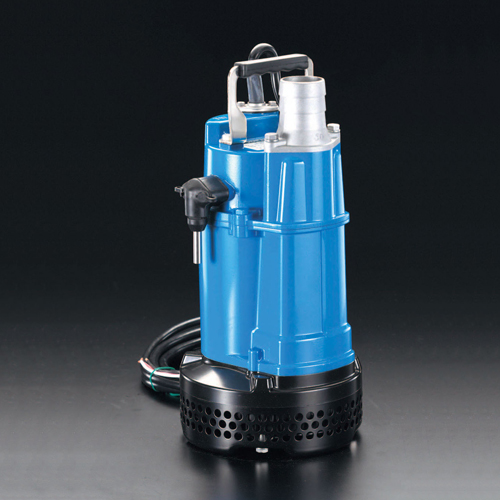

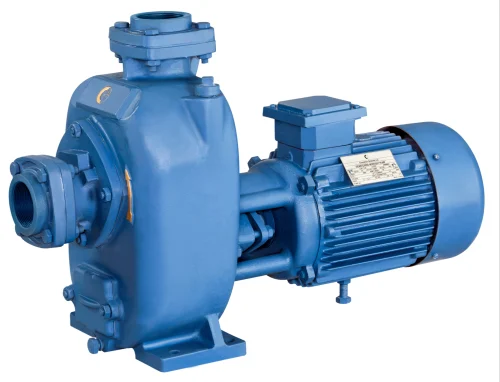

Electrical Dewatering Pump
Pump Specification
- Pumping capacity 350 cm3/hour.
- Pump Suction and Discharge (6″x6″)
- Total Head : 25mtrs
- vaccum lift : 8.5mts
- Volute housing : : Cast Iron
- Impeller : Stainless Steel
- Stuffing box : Stainless Steel
- Shaft : Stainless Steel
Pump Specification - Priming tank, Priming tank flter assembly flanges made of Mild Steel.
- 6″ Discharge head and its flanges-Mild Steel.
- 6″ Polyurethane ball.
- Mechanical Seal: John Crane( UK)
- Vaccum Motor-Heavy Duty 70CFM with original parts.
- All Heavy Duty Hoses and Nipples.

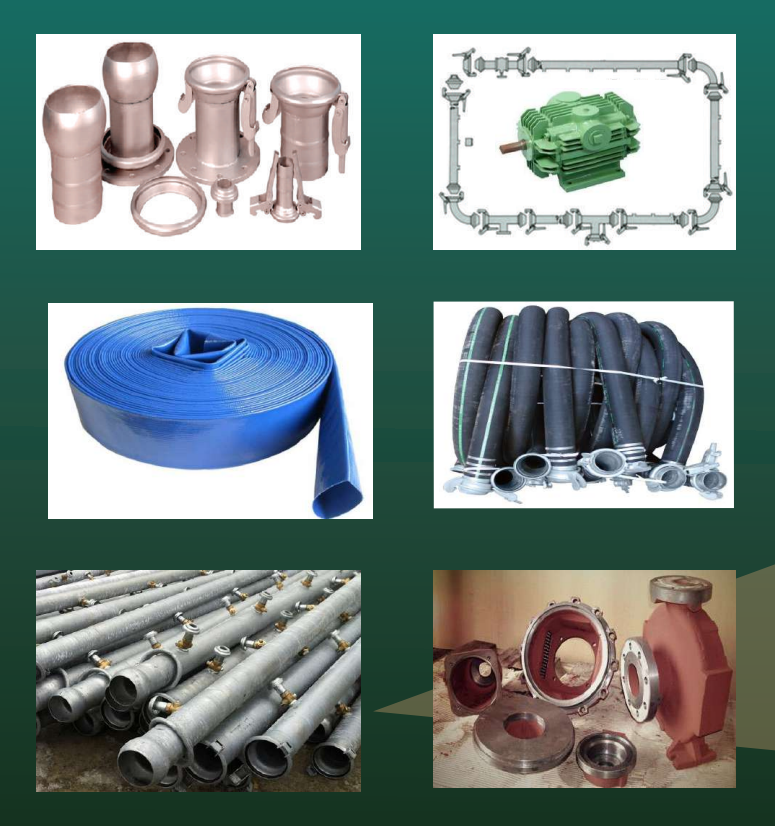

Dewatering accessories
